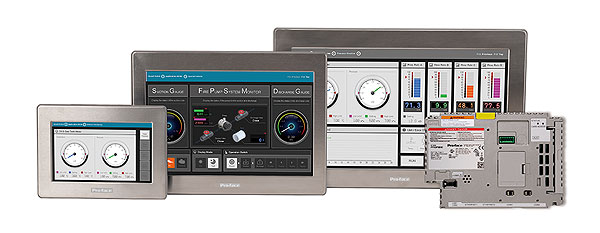

PRO-FACE HMI SP5000X series

With an enhanced information display unit and improved operability, this product is suitable for multiple applications under harsh environmental conditions including use in special purpose vehicles such as fire trucks and construction equipment; parking lots and gas stations; and the oil and gas industry.

Outdoor HMI features

1. Enhanced readability under sunlight.
   • High brightness liquid crystal panel (1000cd/m2)
   • Anti-reflection (Anti-glare)
   • High-transmittance design
2. Robustness backed by uncompromising quality tests
   • UV Protection (Cut UV rays by 99% (380nm))
   • Full Coating (Circuited boards and others)
3. Vibration/Shock Resistance approximately 2 to 2.7 times
   • Operating Temperature: -30℃ to 70℃ (-22 to 158 °F)
   • IP66F, IP67F, Type 4X (indoor and outdoor use), Type 12, Type13 *1
   • 12 to 24Vdc
   • ATEX/IECEx Zone 2/22 *2
   • Corrosive gas Class 3C3 *3Environmentally resistant for use in various settings
4. Efficient maintenance
   • Modular structure
   • Exchangeable system card
   • Battery-less
5. Easily start Pro-face IoT solution
   • Data collection
   • Remote maintenance
6. Connectivity
   • A wide range of devices and field network
   • Engine controller (J1939)
   • I/O (FLEX NETWORK, CANOpen)
