SIRIUS 3RW40 soft starter
The SIRIUS 3RW40 Basic Performance soft starters are suitable for soft starting and stopping of three-phase asynchronous motors.
Thanks to 2-phase control, not only is the current kept at minimum values in all three phases throughout the entire starting time, but disturbing direct current components are also eliminated. This not only enables the 2-phase starting of motors up to 55 kW (at 400 V) but also avoids the current and torque peaks which occur e.g. with star-delta (wye-delta) starters.
The SIRIUS 3RW40 soft starters are suitable for the starting of explosion-proof motors with "increased safety" type of protection EEx e according to ATEX Directive 94/9/EC.

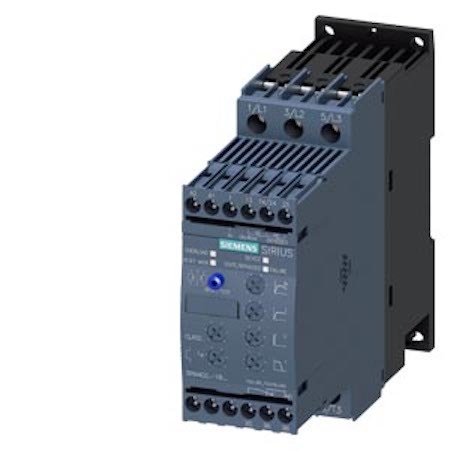

SIRIUS 3RW40 Basic Performance soft starters with accessories
|
|
|
|
|
3RW402. |
3RW403. |
3RW404. |
|
Product characteristics/function |
Performance features/benefits |
|
Small and compact design |
Space-saving, clearly arranged control panel layout |
|
Motor overload and intrinsic device protection without additional wiring |
Adjustable trip classes, integrated diagnostic functions |
|
Integrated in the SIRIUS modular system |
Link modules to motor starter protectors |
|
Hybrid switching devices and 2-phase motor control |
Minimum power loss and optimized motor control by avoiding DC components |
|
Certified according to ATEX Directive 94/9/EC |
Suitable for the starting of explosion-proof motors with "increased safety" type of protection EEx e. |
|
Optional thermistor motor protection |
Full motor protection |
