SIRIUS 3RW50 soft starters device family
SIRIUS 3RW50 Basic Performance soft starters are the compact solution for standard applications. They have 2-phase motor control and cover the performance range from 75 to 315 kW (at 400 V).
Optional HMI modules for installation in the control cabinet door, laterally mountable communications modules (PROFINET, PROFIBUS, EtherNet/IP and Modbus) and either an analog output or thermistor motor protection ensure maximum flexibility.
With their modern hybrid switching technology, the SIRIUS 3RW50 soft starters offer efficient switching for long-term, energy-saving use.

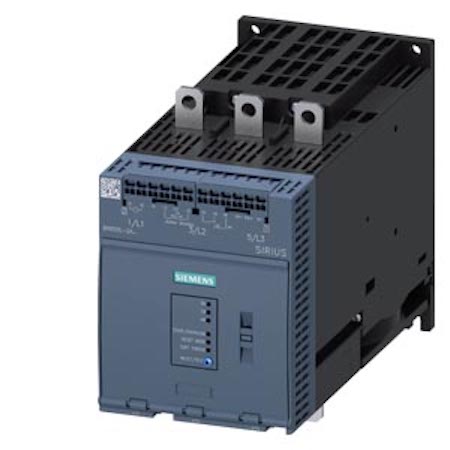

SIRIUS 3RW50 Basic Performance soft starter with accessories
|
Product characteristics/function |
Performance features/benefits |
|
Hybrid switching devices and 2-phase motor control |
Minimum power loss and optimized motor control by avoiding DC components |
|
Small and compact design |
Space-saving, clearly arranged control panel layout |
|
TIA Integration – communications modules and HMI modules optional |
Efficient configuration and maximum flexibility in automation engineering |
|
Motor overload and intrinsic device protection without additional wiring |
Adjustable trip classes, integrated diagnostic functions |
|
Soft Torque |
Reduced mechanical loading and optimum pump stop |
|
Parameterization using potentiometers |
Simple and fast commissioning |
|
Wide range for control supply and main voltage |
Low variance, high system availability even with weak supply networks |
|
Certified according to ATEX/IECEx Directive |
Suitable for the starting of explosion-proof motors with "increased safety" type of protection |
